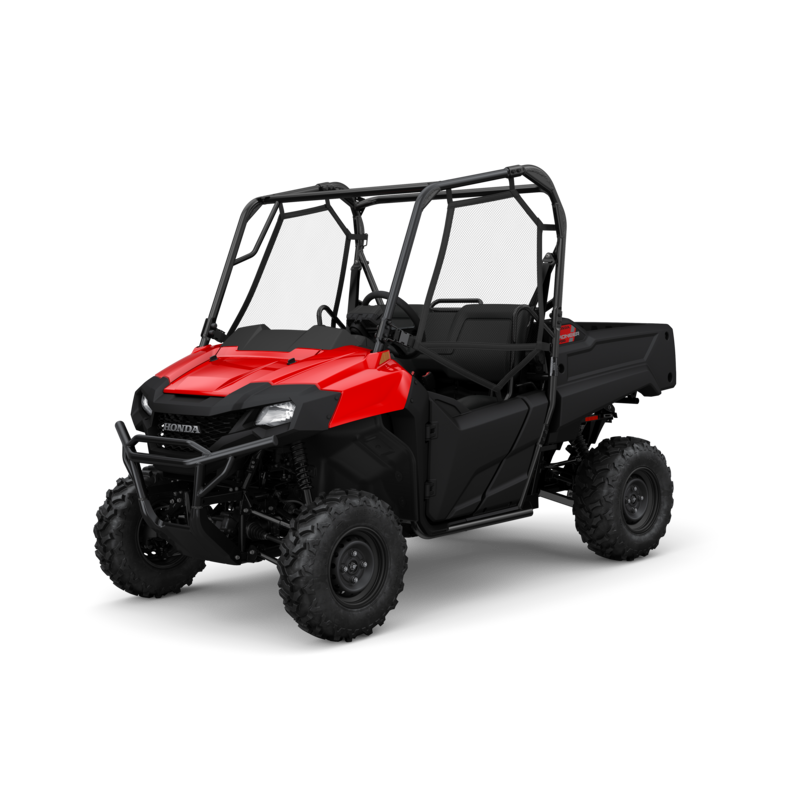

Pioneer 700-2 |

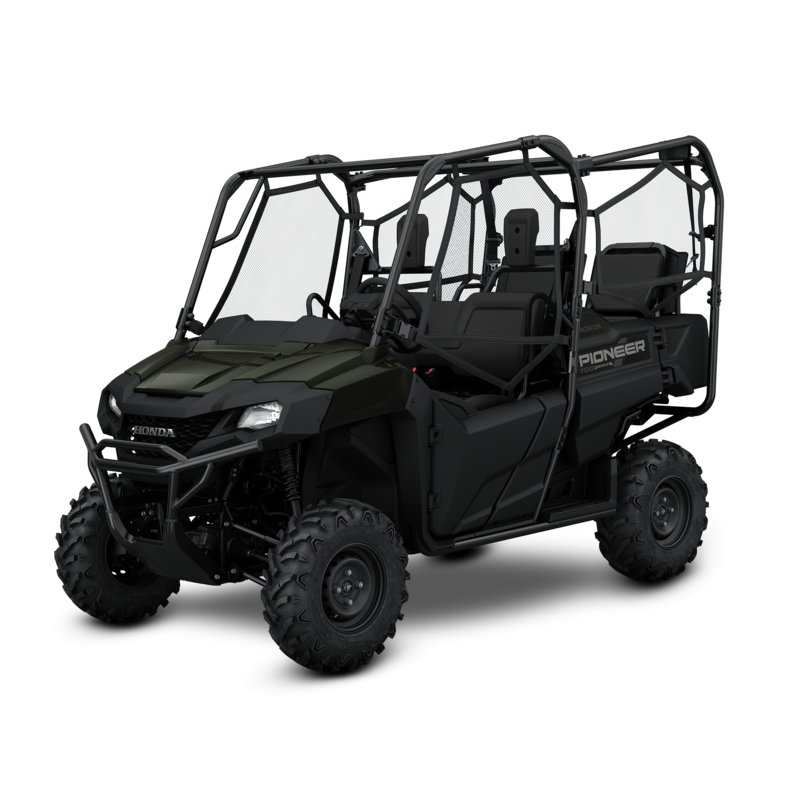

Pioneer 700-4 |
| Chassis |
| Brakes |
|
|
| Brakes (F) |
2x 200mm discs |
2x 200mm discs |
| Brakes (R) |
1x 170mm disc |
1x 170mm disc |
| Steering |
|
|
| Power Steering |
STD |
STD |
| Suspension |
|
|
| Front Adjustability |
- |
- |
| Front Suspension Type |
Independent double-wishbone |
Independent double-wishbone |
| Front Wheel Travel (mm) |
200 |
200 |
| Rear Adjustability |
preload |
preload |
| Rear Suspension Type |
Independent double-wishbone |
Independent double-wishbone |
| Rear Wheel Travel (mm) |
230 |
230 |
| Dimensions, Weights And Capacities |
| Capacities |
30 |
30 |
| Dimensions |
|
|
| Bed Dumping Angle |
40° |
40° |
| Turning Radius (m) |
4.5 |
4.5 |
| Wheelbase (mm) |
1,950 |
1,951 |
| Bed Height (mm) |
282 |
282 |
| Bed Length (mm) |
924 |
924 |
| Bed Width (mm) |
1154 |
1154 |
| Ground Clearance (mm) |
270 |
265 |
| Overall Height (mm) |
1,970 |
1,992 |
| Overall Length (mm) |
2,910 |
2,912 |
| Overall Width (mm) |
1,525 |
1,522 |
| Seat Height (mm) |
868 |
868 |
| Weights |
|
|
| Bed/Tray Weight Capacity (kg) |
454 |
454 |
| Kerb Weight (kg) |
583 |
647 |
| Max Weight Capacity (kg) |
604 |
650 |
| Towing Capacity (kg) |
680 |
680 |
| Powertrain |
| Engine |
|
|
| Bore & Stroke (mm) |
102 x 82.6 |
9.2:1 |
| Compression Ratio |
9.2:1 |
102.0 x 82.6 |
| Cylinders |
1 |
1 |
| Displacement (cc) |
675 |
675 |
| Engine Type |
Liquid-cooled 4-stroke |
Liquid-cooled 4-stroke |
| Fuel System |
Fuel Injection |
Fuel Injection |
| Starter |
Electric |
Electric |
| Valves |
4 |
4 |
| Transmission |
|
|
| Drive Modes |
2WD, 4WD, 4WD Lock |
2WD, 4WD, 4WD Lock |
| Transmission |
3-speed with reverse;
manual and automatic modes |
3-speed with reverse;
manual and automatic modes |
| Drive |
Shaft |
Shaft |
| Tyres And Wheels |
| Tyres |
|
|
| Tyres (F) |
25x8-12 |
25x8-12 |
| Tyres (R) |
25x10-12 |
25x10-12 |
| Warranty |
| Warranty |
36 months |
36 months |
