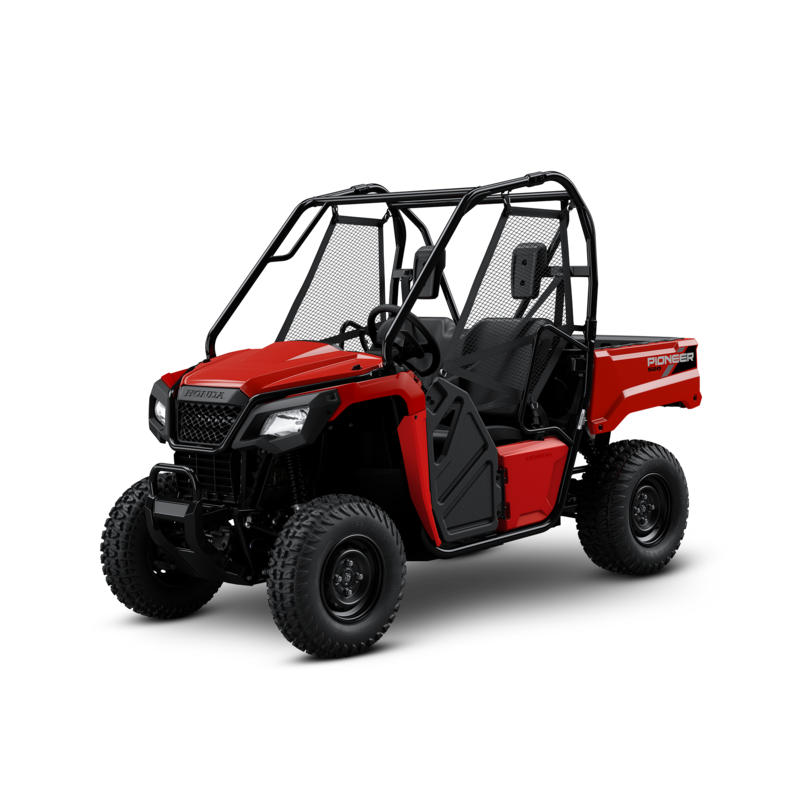

Pioneer 520 |
| Chassis |
| Brakes |
|
| Brakes (F) |
2x 200mm disc |
| Brakes (R) |
1x 170mm disc |
| Steering |
|
| Power Steering |
- |
| Suspension |
|
| Front Adjustability |
preload |
| Front Suspension Type |
Independent double-wishbone |
| Front Wheel Travel (mm) |
147 |
| Rear Adjustability |
preload |
| Rear Suspension Type |
Independent double-wishbone |
| Rear Wheel Travel (mm) |
150 |
| Dimensions, Weights And Capacities |
| Capacities |
15.4 |
| Dimensions |
|
| Bed Dumping Angle |
- |
| Turning Radius (m) |
3.9 |
| Wheelbase (mm) |
1,856 |
| Bed Height (mm) |
249 |
| Bed Length (mm) |
658 |
| Bed Width (mm) |
983 |
| Ground Clearance (mm) |
220 |
| Overall Height (mm) |
1,812 |
| Overall Length (mm) |
2,668 |
| Overall Width (mm) |
1,270 |
| Seat Height (mm) |
703 |
| Weights |
|
| Bed/Tray Weight Capacity (kg) |
204 |
| Kerb Weight (kg) |
485 |
| Max Weight Capacity (kg) |
400 |
| Towing Capacity (kg) |
454 |
| Powertrain |
| Engine |
|
| Bore & Stroke (mm) |
96 x 71.5 |
| Compression Ratio |
9.5:1 |
| Cylinders |
1 |
| Displacement (cc) |
518 |
| Engine Type |
Liquid-cooled 4-stroke |
| Fuel System |
Fuel Injection |
| Starter |
Electric |
| Valves |
2 |
| Transmission |
|
| Drive Modes |
2WD, 4WD |
| Transmission |
5-speed with reverse;
manual and automatic modes |
| Drive |
Shaft |
| Tyres And Wheels |
| Tyres |
|
| Tyres (F) |
24x8-12 |
| Tyres (R) |
24x10-12 |
| Warranty |
| Warranty |
3 years |
