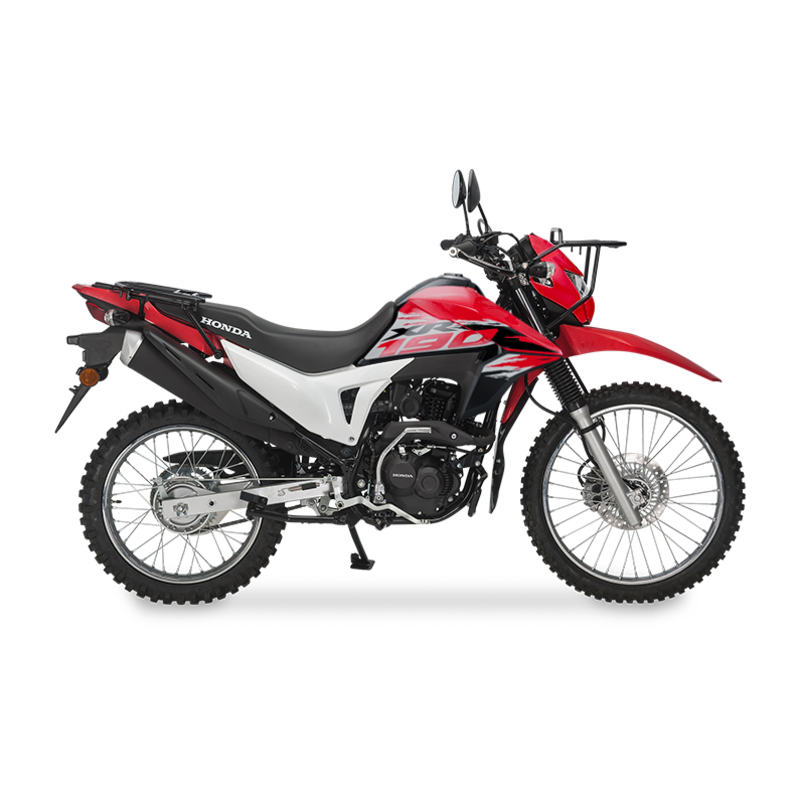

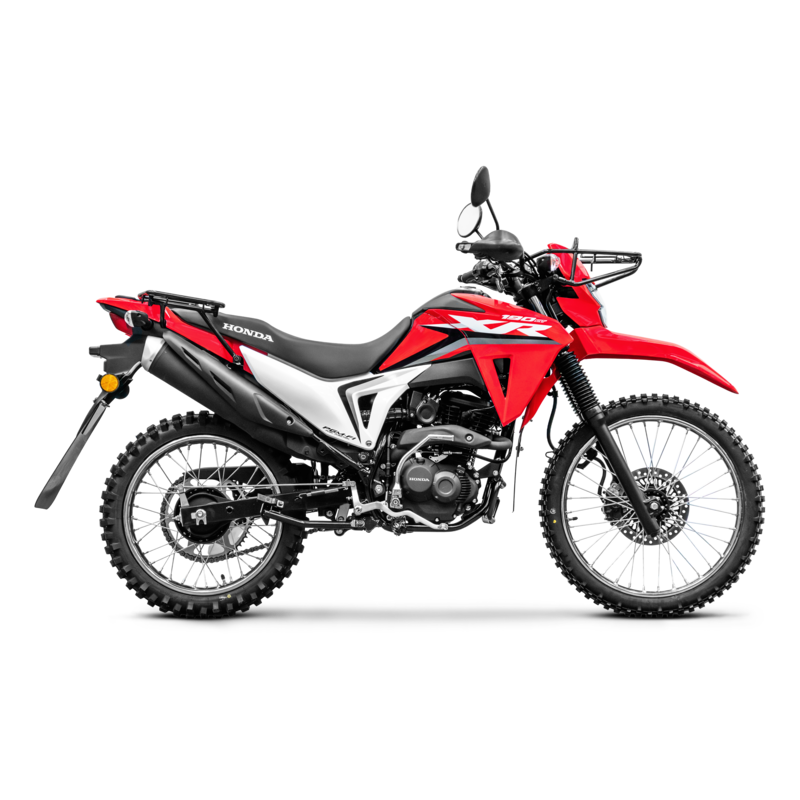

XR190CT |
| Chassis |
| Brakes |
|
| Brakes (F) |
Single 240mm disc |
| Brakes (R) |
110mm Drum |
| Suspension |
|
| Front Adjustability |
- |
| Front Suspension Type |
Telescopic fork |
| Front Wheel Travel (mm) |
160 |
| Rear Adjustability |
- |
| Rear Suspension Type |
Single Shock |
| Rear Wheel Travel (mm) |
150 |
| Dimensions, Weights And Capacities |
| Capacities |
|
| Fuel Capacity (L) |
12 |
| Dimensions |
|
| Wheelbase (mm) |
1,366 |
| Ground Clearance (mm) |
237 |
| Overall Height (mm) |
1,151 |
| Overall Length (mm) |
2,102 |
| Overall Width (mm) |
852 |
| Seat Height (mm) |
827 |
| Weights |
|
| Kerb Weight (kg) |
139 |
| Powertrain |
| Engine |
|
| Bore & Stroke (mm) |
61 x 63.1 |
| Compression Ratio |
9.5:1 |
| Cylinders |
1 |
| Displacement (cc) |
184 |
| Engine Type |
Air-cooled 4-stroke |
| Fuel System |
Fuel injection |
| Starter |
Electric and kick |
| Valves |
2 |
| Transmission |
|
| Transmission |
5-speed |
| Drive |
Chain |
| Tyres And Wheels |
| Tyres |
|
| Tyres (F) |
2.75-21 |
| Tyres (R) |
90/100-18 |
| Warranty |
