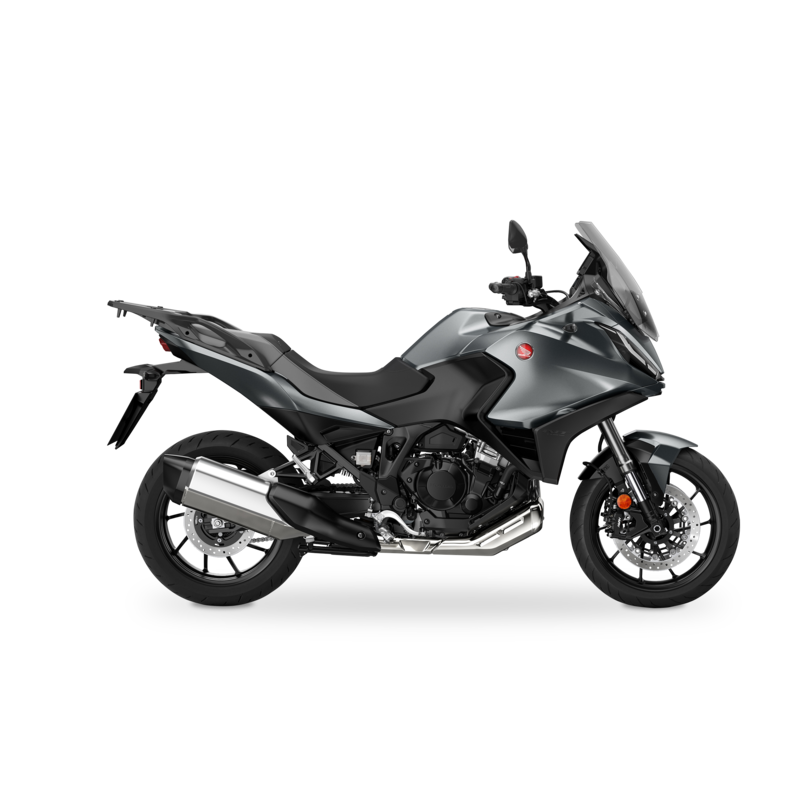

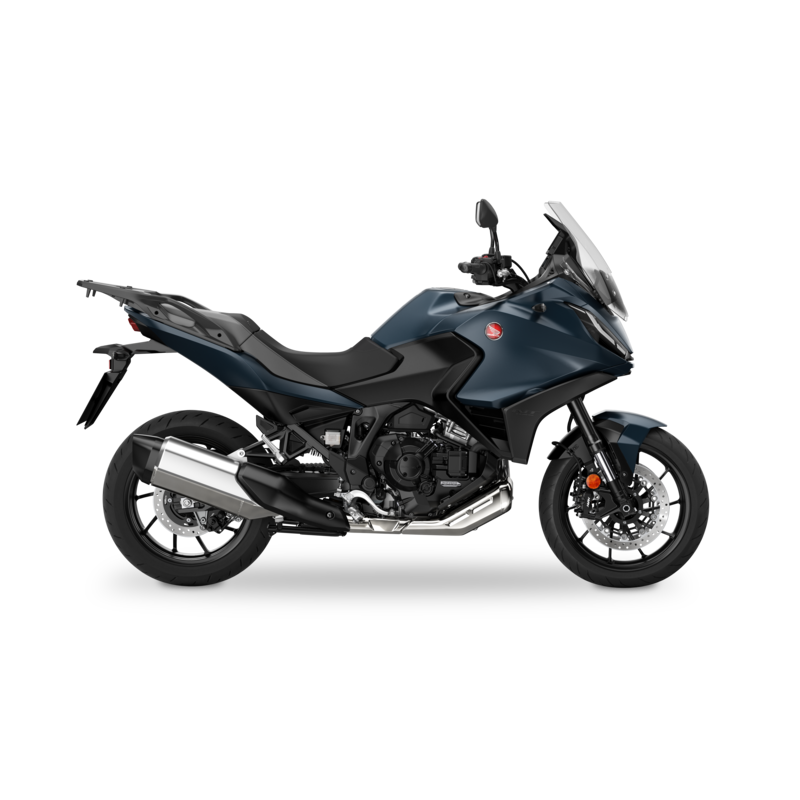

NT1100 DCT |
NT1100 |
| Chassis |
| Brakes |
|
|
| Brakes (F) |
2x 310mm discs, ABS |
2x 310mm discs, ABS |
| Brakes (R) |
1x 256mm disc, ABS |
1x 256mm disc, ABS |
| Suspension |
|
|
| Front Adjustability |
preload and rebound |
preload and rebound |
| Front Suspension Type |
45mm inverted telescopic fork |
45mm inverted telescopic fork |
| Front Wheel Travel (mm) |
150 |
150 |
| Rear Adjustability |
preload |
preload |
| Rear Suspension Type |
single shock |
single shock |
| Rear Wheel Travel (mm) |
150 |
150 |
| Dimensions, Weights And Capacities |
| Capacities |
|
|
| Fuel Capacity (L) |
20.4 |
20.4 |
| Dimensions |
|
|
| Wheelbase (mm) |
1,535 |
1,535 |
| Ground Clearance (mm) |
175 |
175 |
| Overall Height (mm) |
1,360 low screen (1,525 high screen) |
1,360 low screen (1,525 high screen) |
| Overall Length (mm) |
2,240 |
2,240 |
| Overall Width (mm) |
865 |
865 |
| Seat Height (mm) |
820 |
820 |
| Weights |
|
|
| Kerb Weight (kg) |
248 |
238 |
| Powertrain |
| Engine |
|
|
| Bore & Stroke (mm) |
92 x 81.5 |
92 x 81.5 |
| Compression Ratio |
10.1 : 1 |
10.1 : 1 |
| Cylinders |
2 |
2 |
| Displacement (cc) |
1084 |
1084 |
| Engine Type |
liquid-cooled 4-stroke |
liquid-cooled 4-stroke |
| Fuel System |
Fuel Injection |
Fuel Injection |
| Starter |
Electric |
Electric |
| Valves |
8 |
8 |
| Transmission |
|
|
| Transmission |
DCT 6-speed |
6-speed |
| Drive |
Chain |
Chain |
| Tyres And Wheels |
| Tyres |
|
|
| Tyres (F) |
120/70-17 |
120/70-17 |
| Tyres (R) |
180/55-17 |
180/55-17 |
| Warranty |
| Warranty |
24 months |
24 months |
