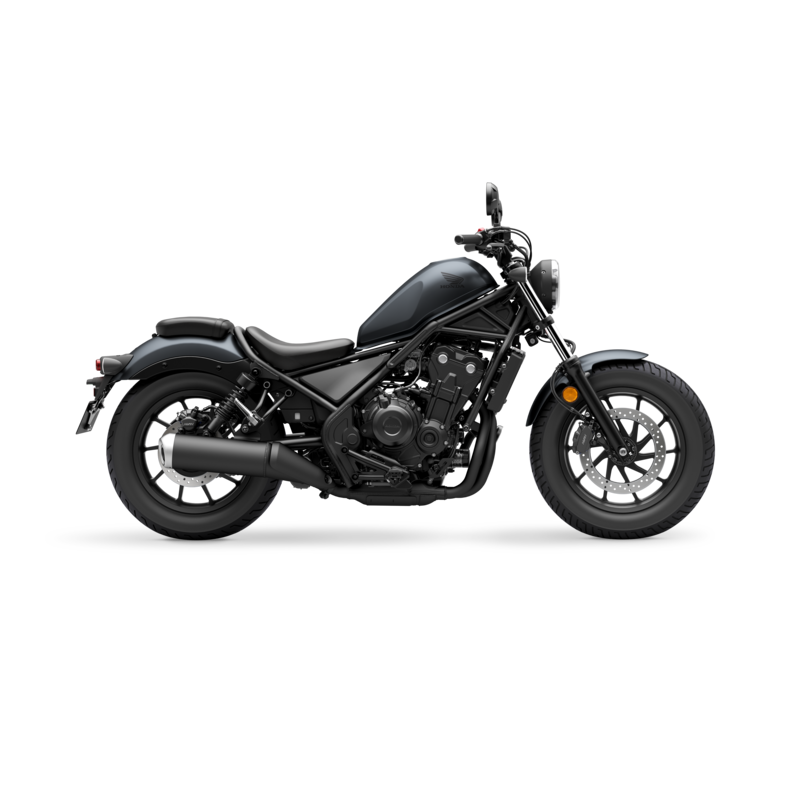

CMX500 |
CMX500 S Edition |
| Chassis |
| Brakes |
|
|
| Brakes (F) |
1x 296mm disc, ABS |
1x 296mm disc, ABS |
| Brakes (R) |
1x 240mm disc, ABS |
1x 240mm disc, ABS |
| Suspension |
|
|
| Front Adjustability |
- |
- |
| Front Suspension Type |
41mm telescopic fork |
41mm telescopic fork |
| Front Wheel Travel (mm) |
121 |
121 |
| Rear Adjustability |
preload |
preload |
| Rear Suspension Type |
twin shocks |
twin shocks |
| Rear Wheel Travel (mm) |
95 |
95 |
| Dimensions, Weights And Capacities |
| Capacities |
|
|
| Fuel Capacity (L) |
11.2 |
11.2 |
| Dimensions |
|
|
| Wheelbase (mm) |
1,490 |
1,490 |
| Ground Clearance (mm) |
135 |
135 |
| Overall Height (mm) |
1,090 |
1,090 |
| Overall Length (mm) |
2,205 |
2,205 |
| Overall Width (mm) |
820 |
820 |
| Seat Height (mm) |
690 |
690 |
| Weights |
|
|
| Kerb Weight (kg) |
190 |
191 |
| Powertrain |
| Engine |
|
|
| Bore & Stroke (mm) |
67 x 66.8 |
67 x 66.8 |
| Compression Ratio |
10.7:1 |
10.7:1 |
| Cylinders |
inline 2 |
inline 2 |
| Displacement (cc) |
471cc |
471 |
| Engine Type |
Liquid-cooled 4-stroke |
Liquid-cooled 4-stroke |
| Fuel System |
Fuel Injection |
Fuel Injection |
| Starter |
Electric |
Electric |
| Valves |
8 |
8 |
| Transmission |
|
|
| Transmission |
6-speed |
6-speed |
| Drive |
Chain |
Chain |
| Tyres And Wheels |
| Tyres |
|
|
| Tyres (F) |
130/90-16 |
130/90-16 |
| Tyres (R) |
150/80-16 |
150/80-16 |
| Warranty |
| Warranty |
24 months |
24 months |
