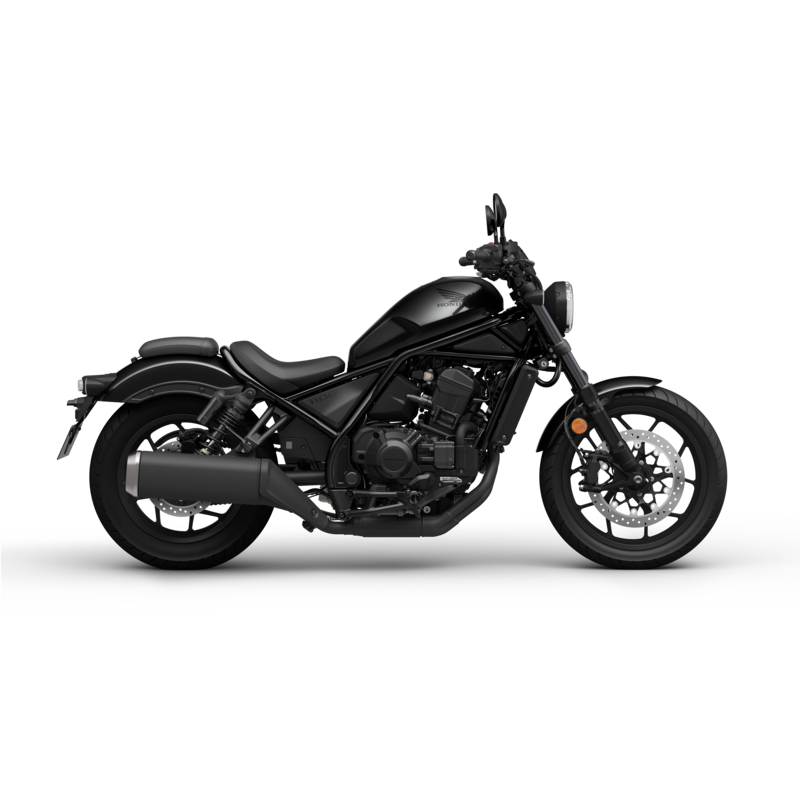

CMX1100 DCT |
CMX1100 |

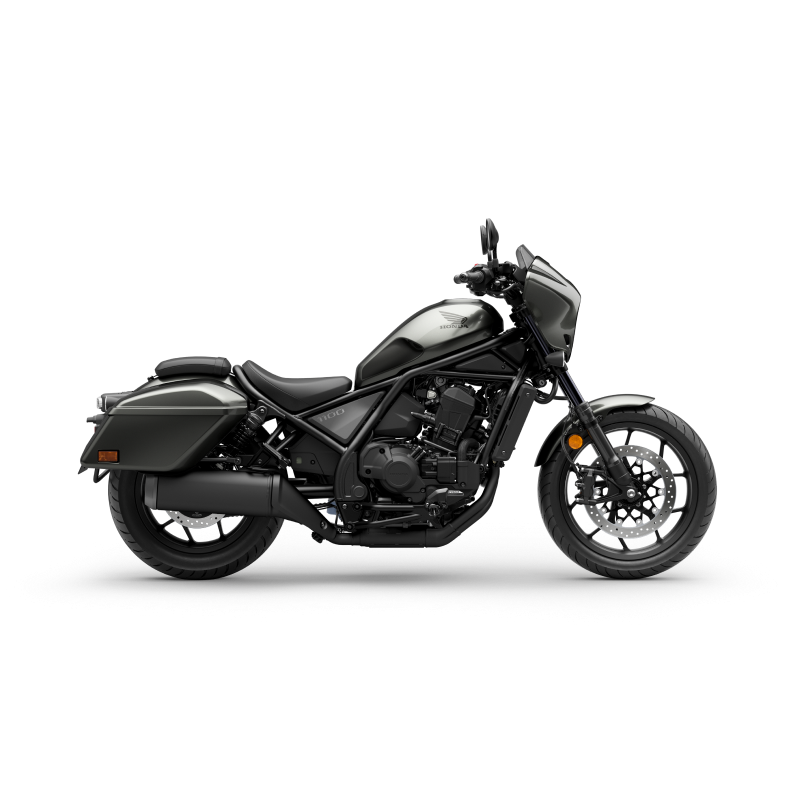

CMX1100 Tour |
| Chassis |
| Brakes |
|
|
|
| Brakes (F) |
1x 330mm disc, ABS |
1x 330mm disc, ABS |
1x 330mm disc, ABS |
| Brakes (R) |
1x 256mm disc, ABS |
1x 256mm disc, ABS |
1x 256mm disc, ABS |
| Suspension |
|
|
|
| Front Adjustability |
Preload |
Preload |
preload |
| Front Suspension Type |
43mm telescopic fork |
43mm telescopic fork |
43mm telescopic fork |
| Front Wheel Travel (mm) |
121 |
121 |
121 |
| Rear Adjustability |
Preload |
Preload |
preload |
| Rear Suspension Type |
twin shocks |
twin shocks |
twin shocks |
| Rear Wheel Travel (mm) |
95 |
95 |
95 |
| Dimensions, Weights And Capacities |
| Capacities |
|
|
|
| Fuel Capacity (L) |
13.6 |
13.6 |
13.6 |
| Dimensions |
|
|
|
| Wheelbase (mm) |
1,520 |
|
700 |
| Ground Clearance (mm) |
120 |
120 |
120 |
| Overall Height (mm) |
1,115 |
1,115 |
1,180 |
| Overall Length (mm) |
2,240 |
2,240 |
2,240 |
| Overall Width (mm) |
834 |
853 |
848 |
| Seat Height (mm) |
700 |
700 |
1,520 |
| Weights |
|
|
|
| Kerb Weight (kg) |
233 |
223 |
248 |
| Powertrain |
| Engine |
|
|
|
| Bore & Stroke (mm) |
92 x 81.5 |
92 x 81.5 |
92 x 81.5 |
| Compression Ratio |
10.1:1 |
10.1:1 |
10.1:1 |
| Cylinders |
inline 2 |
inline 2 |
inline 2 |
| Displacement (cc) |
1,084 |
1,084 |
1084 |
| Engine Type |
Liquid-cooled 4-stroke |
Liquid-cooled 4-stroke |
Liquid-cooled 4-stroke |
| Fuel System |
Fuel Injection |
Fuel Injection |
Fuel Injection |
| Starter |
Electric |
Electric |
Electric |
| Valves |
8 |
8 |
8 |
| Transmission |
|
|
|
| Transmission |
DCT 6-speed |
6-speed |
6-speed |
| Drive |
Chain |
Chain |
Chain |
| Tyres And Wheels |
| Tyres |
|
|
|
| Tyres (F) |
130/70-18 |
130/70-18 |
130/70-18 |
| Tyres (R) |
180/65-16 |
180/65-16 |
180/65-16 |
| Warranty |
| Warranty |
24 months |
24 months |
24 months |
