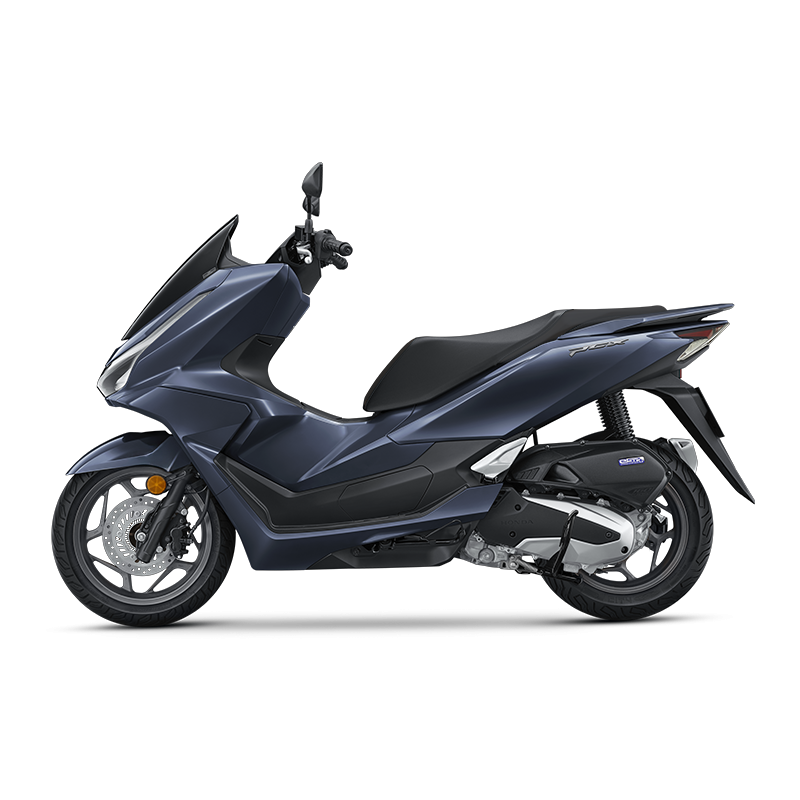

PCX |
| Chassis |
| Brakes |
|
| Brakes (F) |
1x 220mm disc, Combined Braking System |
| Brakes (R) |
Drum |
| Suspension |
|
| Front Adjustability |
- |
| Front Suspension Type |
31mm telescopic fork |
| Front Wheel Travel (mm) |
89 |
| Rear Adjustability |
- |
| Rear Suspension Type |
Twin shocks |
| Rear Wheel Travel (mm) |
95 |
| Dimensions, Weights And Capacities |
| Capacities |
|
| Fuel Capacity (L) |
8.1 |
| Dimensions |
|
| Wheelbase (mm) |
1,315 |
| Ground Clearance (mm) |
135 |
| Overall Height (mm) |
1,125 |
| Overall Length (mm) |
1,935 |
| Overall Width (mm) |
735 |
| Seat Height (mm) |
764 |
| Weights |
|
| Kerb Weight (kg) |
131 |
| Powertrain |
| Engine |
|
| Bore & Stroke (mm) |
53.5 x 55.5 |
| Compression Ratio |
11.5 : 1 |
| Cylinders |
1 |
| Displacement (cc) |
125 |
| Engine Type |
Liquid Cooled, 4-stroke |
| Fuel System |
Fuel Injection |
| Starter |
Electric |
| Valves |
4 |
| Transmission |
|
| Transmission |
CVT |
| Drive |
Belt |
| Tyres And Wheels |
| Tyres |
|
| Tyres (F) |
110/70-14 |
| Tyres (R) |
130/70-13 |
| Warranty |
| Warranty |
24 months |
