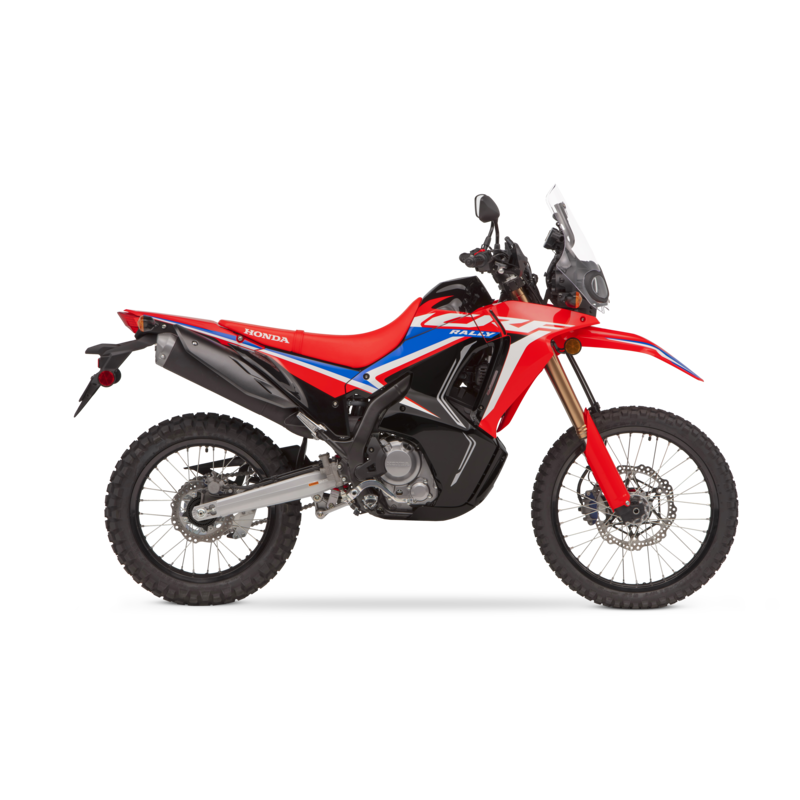

25YM CRF300 Rally |

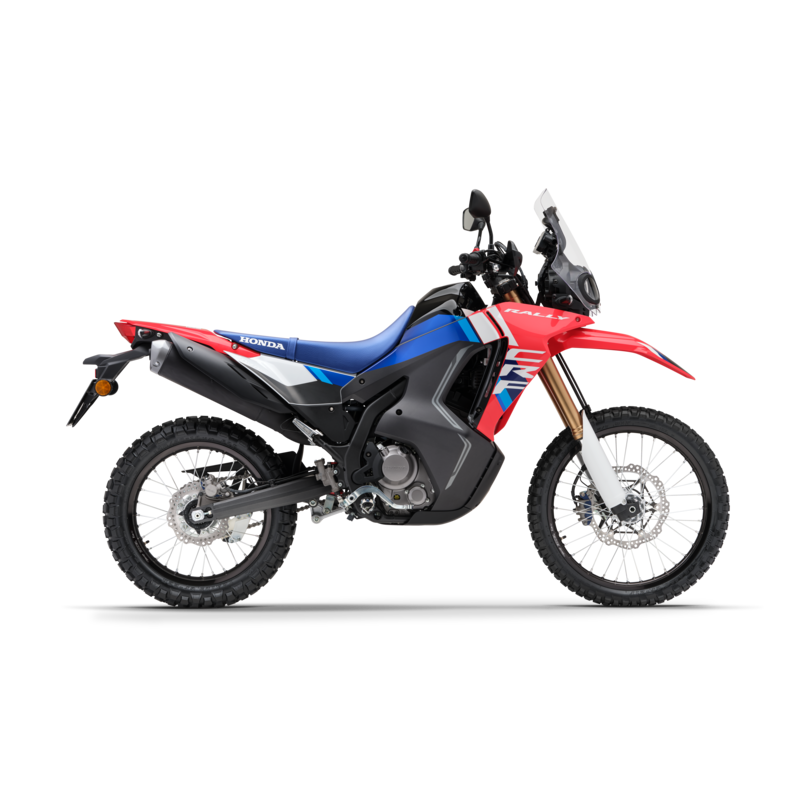

24YM CRF300 Rally |
| Chassis |
| Brakes |
|
|
| Brakes (F) |
1x 296mm disc, ABS |
1x 296mm disc, ABS |
| Brakes (R) |
1x 220mm disc, ABS |
1x 220mm disc, ABS |
| Suspension |
|
|
| Front Adjustability |
- |
- |
| Front Suspension Type |
43mm inverted telescopic fork |
43mm inverted telescopic fork |
| Front Wheel Travel (mm) |
234 |
234 |
| Rear Adjustability |
- |
- |
| Rear Suspension Type |
single shock |
single shock |
| Rear Wheel Travel (mm) |
260 |
260 |
| Dimensions, Weights And Capacities |
| Capacities |
|
|
| Fuel Capacity (L) |
12.8 |
12.8 |
| Dimensions |
|
|
| Wheelbase (mm) |
1,455 |
1,455 |
| Ground Clearance (mm) |
275 |
275 |
| Overall Height (mm) |
1,415 |
1,415 |
| Overall Length (mm) |
2,230 |
2,230 |
| Overall Width (mm) |
920 |
920 |
| Seat Height (mm) |
885 |
885 |
| Weights |
|
|
| Kerb Weight (kg) |
153 |
152 |
| Powertrain |
| Engine |
|
|
| Bore & Stroke (mm) |
76.0 x 63.0 |
76.0 x 63.0 |
| Compression Ratio |
10.7 : 1 |
10.7 : 1 |
| Cylinders |
1 |
1 |
| Displacement (cc) |
286 |
286 |
| Engine Type |
Liquid-cooled 4-stroke |
Liquid-cooled 4-stroke |
| Fuel System |
Fuel injection |
Fuel injection |
| Starter |
Electric |
Electric |
| Valves |
4 |
4 |
| Transmission |
|
|
| Transmission |
6-speed |
6-speed |
| Drive |
Chain |
Chain |
| Tyres And Wheels |
| Tyres |
|
|
| Tyres (F) |
80/100-21 |
80/100-21 |
| Tyres (R) |
120/80-18 |
120/80-18 |
| Warranty |
| Warranty |
24 months |
24 months |
