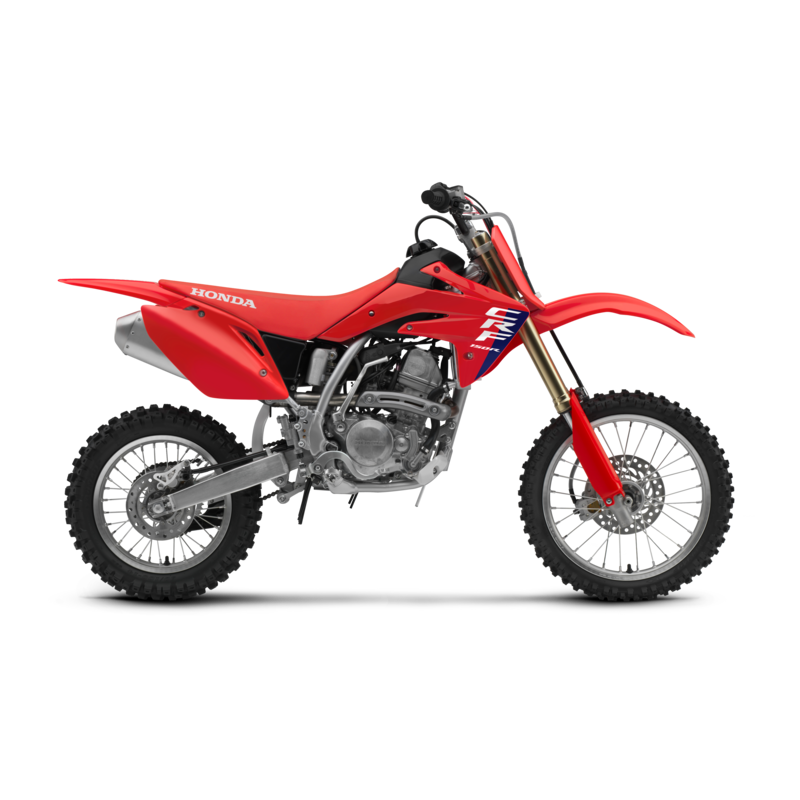

CRF150R |
| Chassis |
| Brakes |
|
| Brakes (F) |
1x 220mm disc |
| Brakes (R) |
1x 190mm disc |
| Suspension |
|
| Front Adjustability |
compression and rebound |
| Front Suspension Type |
37mm inverted telescopic fork |
| Front Wheel Travel (mm) |
241 |
| Rear Adjustability |
compression and rebound |
| Rear Suspension Type |
single shock |
| Rear Wheel Travel (mm) |
282 |
| Dimensions, Weights And Capacities |
| Capacities |
|
| Fuel Capacity (L) |
4.3 |
| Dimensions |
|
| Wheelbase (mm) |
1,285mm |
| Ground Clearance (mm) |
336mm |
| Overall Height (mm) |
1,171 |
| Overall Length (mm) |
1,900 |
| Overall Width (mm) |
770 |
| Seat Height (mm) |
866mm |
| Weights |
|
| Kerb Weight (kg) |
84.4 |
| Powertrain |
| Engine |
|
| Bore & Stroke (mm) |
66 x 43.8 |
| Compression Ratio |
11.7:1 |
| Cylinders |
1 |
| Displacement (cc) |
149 |
| Engine Type |
Liquid-cooled 4-stroke |
| Fuel System |
Carburetor |
| Starter |
Kick |
| Valves |
4 |
| Transmission |
|
| Transmission |
5-Speed |
| Drive |
Chain |
| Tyres And Wheels |
| Tyres |
|
| Tyres (F) |
70/100-19 |
| Tyres (R) |
90/100-16 |
