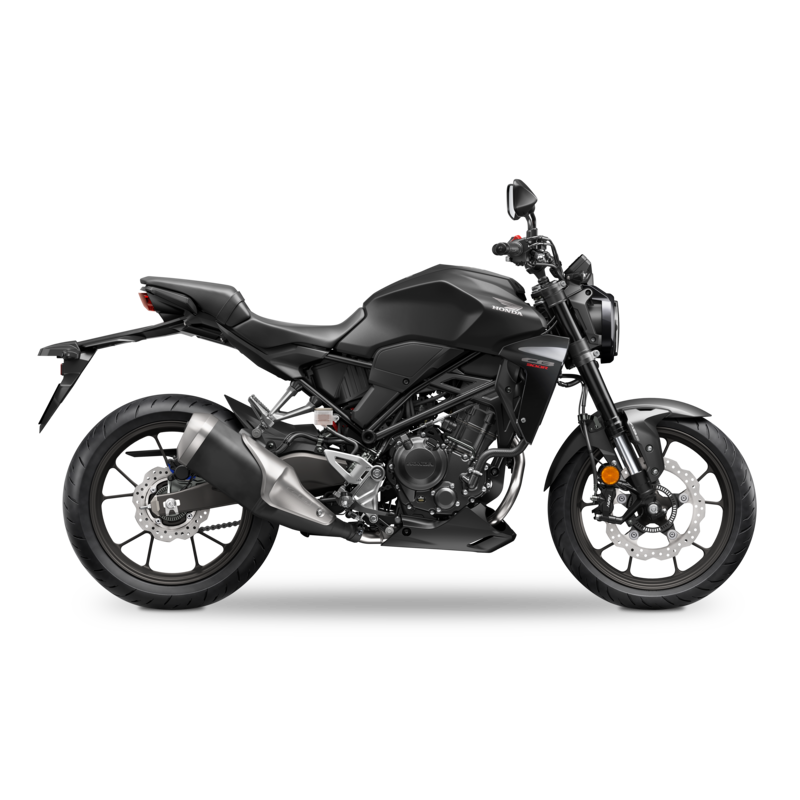

CB300R |
| Chassis |
| Brakes |
|
| Brakes (F) |
1x 296mm disc, ABS |
| Brakes (R) |
1x 220mm disc, ABS |
| Suspension |
|
| Front Adjustability |
- |
| Front Suspension Type |
41mm telescopic fork |
| Front Wheel Travel (mm) |
118 |
| Rear Adjustability |
preload |
| Rear Suspension Type |
single shock |
| Rear Wheel Travel (mm) |
132 |
| Dimensions, Weights And Capacities |
| Capacities |
|
| Fuel Capacity (L) |
10 |
| Dimensions |
|
| Wheelbase (mm) |
1,355 |
| Ground Clearance (mm) |
155 |
| Overall Height (mm) |
1,050 |
| Overall Length (mm) |
2,020 |
| Overall Width (mm) |
805 |
| Seat Height (mm) |
800 |
| Weights |
|
| Kerb Weight (kg) |
143 |
| Powertrain |
| Engine |
|
| Bore & Stroke (mm) |
76 x 63 |
| Compression Ratio |
10.7:1 |
| Cylinders |
1 |
| Displacement (cc) |
286 |
| Engine Type |
Liquid-cooled 4-stroke |
| Fuel System |
Fuel Injection |
| Starter |
Electric |
| Valves |
4 |
| Transmission |
|
| Transmission |
6-speed |
| Drive |
Chain |
| Tyres And Wheels |
| Tyres |
|
| Tyres (F) |
110/70-17 |
| Tyres (R) |
150/60-17 |
| Warranty |
| Warranty |
24 months |
