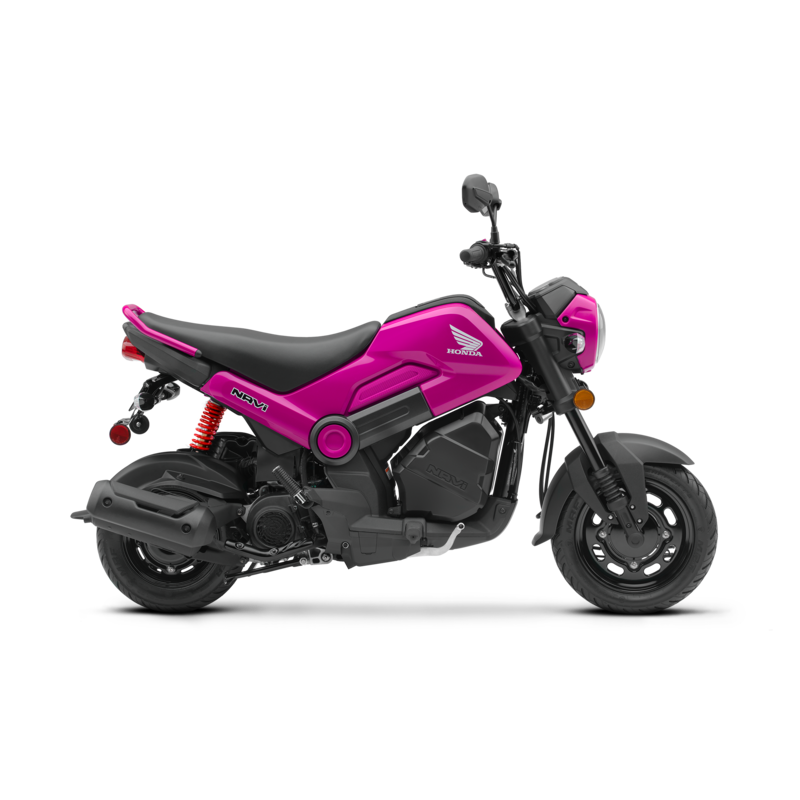

NAVi |
| Chassis |
| Brakes |
|
| Brakes (F) |
Drum |
| Brakes (R) |
Drum |
| Suspension |
|
| Front Adjustability |
n/a |
| Front Suspension Type |
Inverted telescopic fork |
| Front Wheel Travel (mm) |
89 |
| Rear Adjustability |
n/a |
| Rear Suspension Type |
Single shock |
| Rear Wheel Travel (mm) |
70 |
| Dimensions, Weights And Capacities |
| Capacities |
|
| Fuel Capacity (L) |
3.5 |
| Dimensions |
|
| Wheelbase (mm) |
1,286 |
| Ground Clearance (mm) |
156 |
| Overall Height (mm) |
1,039 |
| Overall Length (mm) |
1,805 |
| Overall Width (mm) |
748 |
| Seat Height (mm) |
765 |
| Weights |
|
| Kerb Weight (kg) |
100 |
| Powertrain |
| Engine |
|
| Bore & Stroke (mm) |
50 x 55.6 |
| Compression Ratio |
9.5:1 |
| Cylinders |
1 |
| Displacement (cc) |
109 |
| Engine Type |
Air cooled, 4-stroke |
| Fuel System |
Carburetor |
| Starter |
Electric and kick |
| Valves |
2 |
| Transmission |
|
| Transmission |
CVT |
| Drive |
Belt |
| Tyres And Wheels |
| Tyres |
|
| Tyres (F) |
90/90-12 |
| Tyres (R) |
90/100-10 |
| Warranty |
| Warranty |
24 months |
