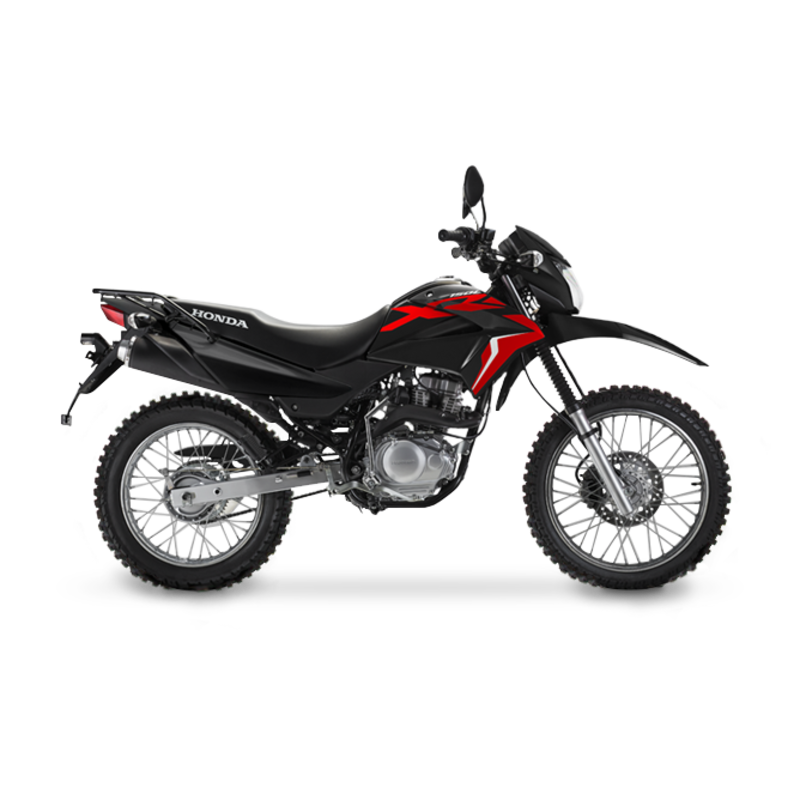

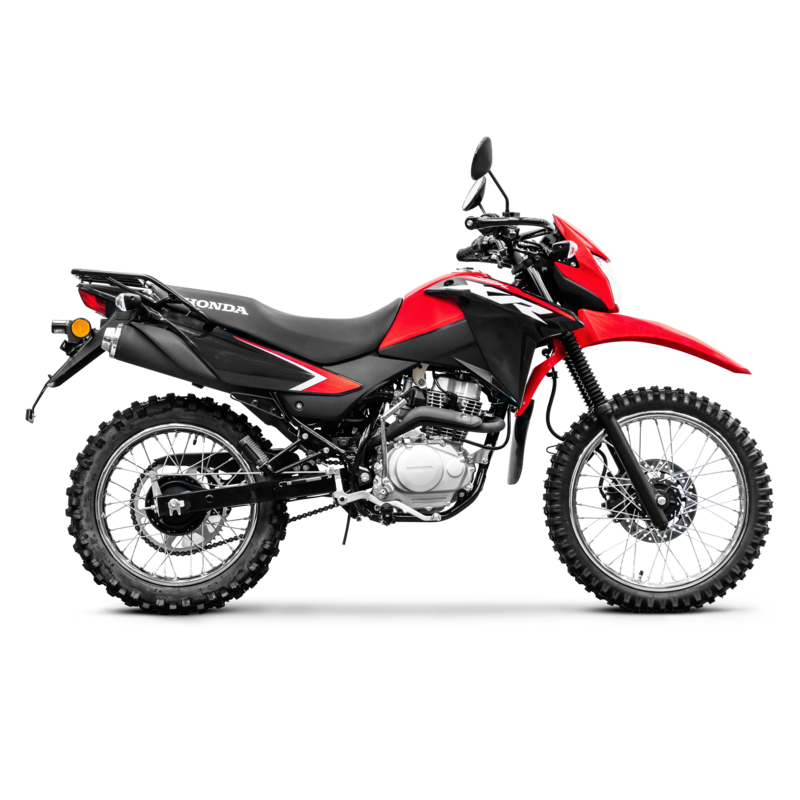

XR150L |
| Chassis |
| Brakes |
|
| Brakes (F) |
1x disc |
| Brakes (R) |
Drum |
| Suspension |
|
| Front Adjustability |
- |
| Front Suspension Type |
Telescopic fork |
| Front Wheel Travel (mm) |
180 |
| Rear Adjustability |
- |
| Rear Suspension Type |
Single Shock |
| Rear Wheel Travel (mm) |
152 |
| Dimensions, Weights And Capacities |
| Capacities |
|
| Fuel Capacity (L) |
12 |
| Dimensions |
|
| Wheelbase (mm) |
1,363 |
| Ground Clearance (mm) |
245 |
| Overall Height (mm) |
1,129 |
| Overall Length (mm) |
2,098 |
| Overall Width (mm) |
813 |
| Seat Height (mm) |
833 |
| Weights |
|
| Kerb Weight (kg) |
130 |
| Powertrain |
| Engine |
|
| Bore & Stroke (mm) |
57.3 x 57.8 |
| Compression Ratio |
9.5:1 |
| Cylinders |
1 |
| Displacement (cc) |
149 |
| Engine Type |
Air-cooled 4-stroke |
| Fuel System |
Carburetor |
| Starter |
Electric and kick |
| Valves |
2 |
| Transmission |
|
| Transmission |
5-speed |
| Drive |
Chain |
| Tyres And Wheels |
| Tyres |
|
| Tyres (F) |
90/90-19 |
| Tyres (R) |
110/90-17 |
| Warranty |
| Warranty |
12 months |
