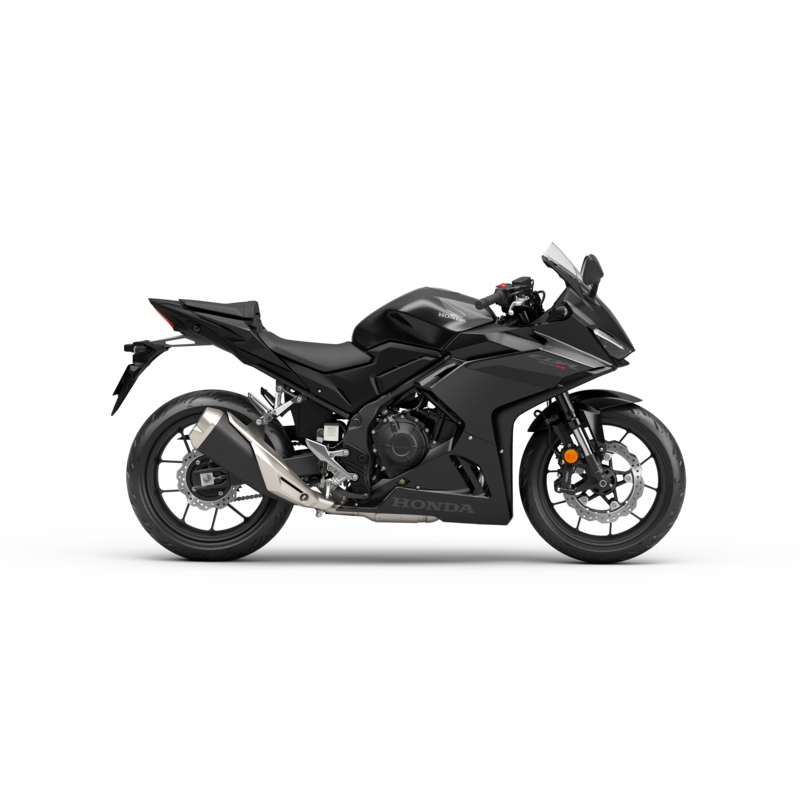

CBR500R |
| Chassis |
| Brakes |
|
| Brakes (F) |
2x 310mm disc, ABS |
| Brakes (R) |
1x 240mm disc, ABS |
| Suspension |
|
| Front Adjustability |
- |
| Front Suspension Type |
41mm telescopic fork |
| Front Wheel Travel (mm) |
TBC |
| Rear Adjustability |
preload |
| Rear Suspension Type |
single shock |
| Rear Wheel Travel (mm) |
TBC |
| Dimensions, Weights And Capacities |
| Capacities |
|
| Fuel Capacity (L) |
17.1 |
| Dimensions |
|
| Wheelbase (mm) |
1,410 |
| Ground Clearance (mm) |
130 |
| Overall Height (mm) |
1,145 |
| Overall Length (mm) |
2,080 |
| Overall Width (mm) |
760 |
| Seat Height (mm) |
785 |
| Weights |
|
| Kerb Weight (kg) |
192 |
| Powertrain |
| Engine |
|
| Bore & Stroke (mm) |
67 x 66.8 |
| Compression Ratio |
10.7:1 |
| Cylinders |
Inline 2 |
| Displacement (cc) |
471 |
| Engine Type |
Liquid cooled, 4-stroke |
| Fuel System |
Fuel Injection |
| Starter |
Electric |
| Valves |
8 |
| Transmission |
|
| Transmission |
6-speed |
| Drive |
Chain |
| Tyres And Wheels |
| Tyres |
|
| Tyres (F) |
120/70-17 |
| Tyres (R) |
160/60-17 |
| Warranty |
| Warranty |
24 months |
