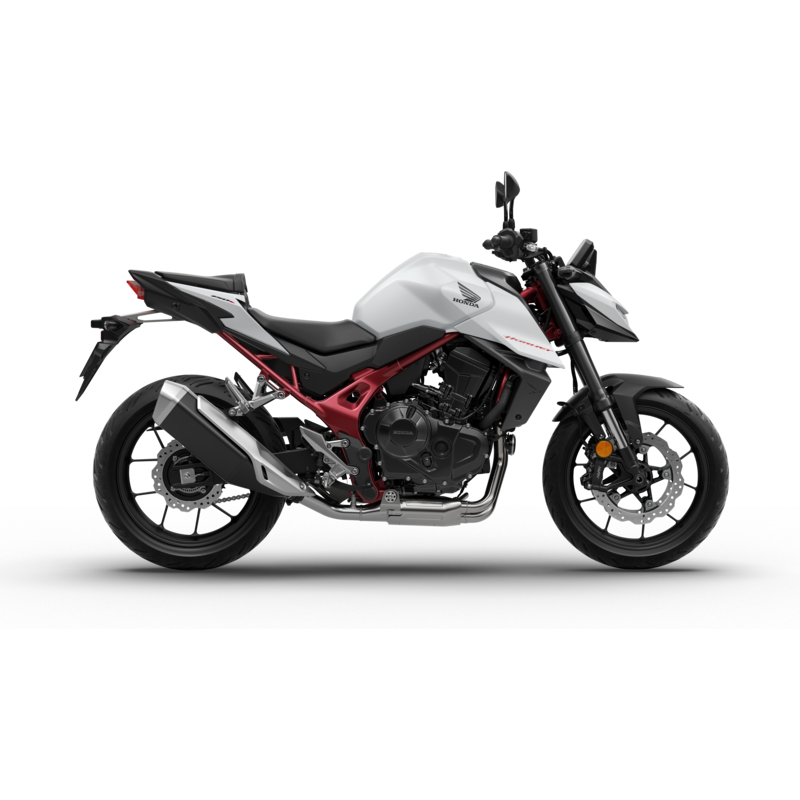

CB750 Hornet |
| Chassis |
| Brakes |
|
| Brakes (F) |
2x 296mm discs, ABS |
| Brakes (R) |
1x 240mm disc, ABS |
| Suspension |
|
| Front Adjustability |
n/a |
| Front Suspension Type |
41mm inverted telescopic fork |
| Front Wheel Travel (mm) |
130 |
| Rear Adjustability |
preload |
| Rear Suspension Type |
single shock |
| Rear Wheel Travel (mm) |
150 |
| Dimensions, Weights And Capacities |
| Capacities |
|
| Fuel Capacity (L) |
15.2 |
| Dimensions |
|
| Wheelbase (mm) |
1,420 |
| Ground Clearance (mm) |
140 |
| Overall Height (mm) |
1,085 |
| Overall Length (mm) |
2,090 |
| Overall Width (mm) |
780 |
| Seat Height (mm) |
795 |
| Weights |
|
| Kerb Weight (kg) |
192 |
| Powertrain |
| Engine |
|
| Bore & Stroke (mm) |
87 x 63.5 |
| Compression Ratio |
11:01 |
| Cylinders |
2 |
| Displacement (cc) |
755 |
| Engine Type |
liquid-cooled 4-stroke |
| Fuel System |
Fuel Injection |
| Starter |
Electric |
| Valves |
8 |
| Transmission |
|
| Transmission |
6-speed |
| Drive |
Chain |
| Tyres And Wheels |
| Tyres |
|
| Tyres (F) |
120/70-17 |
| Tyres (R) |
160/60-17 |
| Warranty |
| Warranty |
24 Months |
