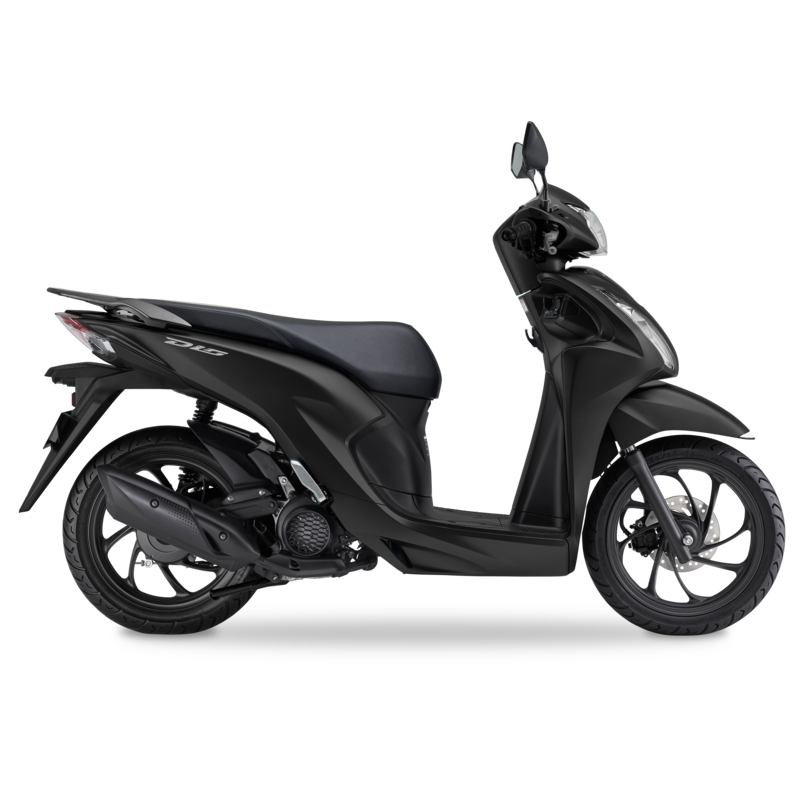

NSC110 Dio |
| Chassis |
| Brakes |
|
| Brakes (F) |
1x 190mm disc |
| Brakes (R) |
Drum |
| Suspension |
|
| Front Adjustability |
- |
| Front Suspension Type |
Telescopic fork |
| Front Wheel Travel (mm) |
81 |
| Rear Adjustability |
- |
| Rear Suspension Type |
Single shock |
| Rear Wheel Travel (mm) |
76 |
| Dimensions, Weights And Capacities |
| Capacities |
|
| Fuel Capacity (L) |
4.9 |
| Dimensions |
|
| Wheelbase (mm) |
1255 |
| Ground Clearance (mm) |
152 |
| Overall Height (mm) |
1101 |
| Overall Length (mm) |
1871 |
| Overall Width (mm) |
686 |
| Seat Height (mm) |
761 |
| Weights |
|
| Kerb Weight (kg) |
95 |
| Powertrain |
| Engine |
|
| Bore & Stroke (mm) |
47 x 63.1 |
| Compression Ratio |
10:1 |
| Cylinders |
1 |
| Displacement (cc) |
109 |
| Engine Type |
Air-Cooled 4-stroke |
| Fuel System |
Fuel Injection |
| Starter |
Electric |
| Valves |
2 |
| Transmission |
|
| Transmission |
CVT |
| Drive |
Belt |
| Tyres And Wheels |
| Tyres |
|
| Tyres (F) |
80/90-14 |
| Tyres (R) |
90/90-14 |
| Warranty |
| Warranty |
6 year unlimited KM (3 year STD + 3 year bonus)⁺ |
